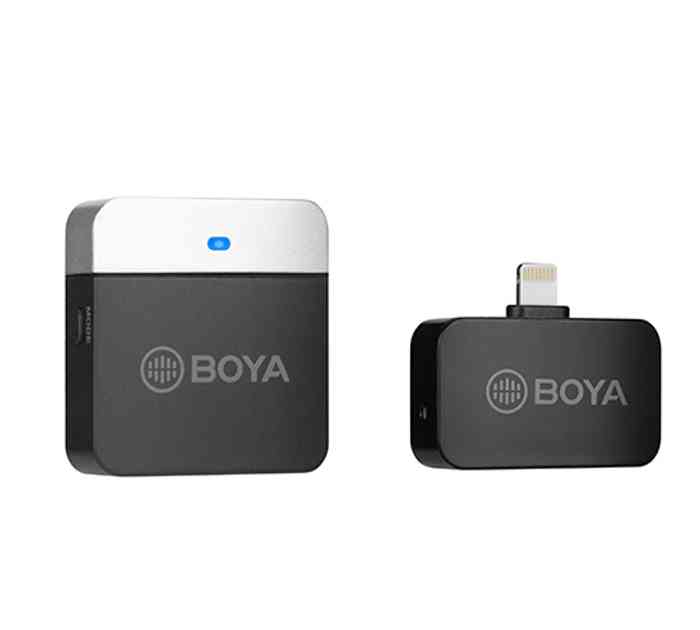

BOYA BY-M1LV-D Wireless Microphone for IOS.

The BOYA BY-M1LV-D 2.4GHz Wireless Microphone The BOYA BY-M1LV is a lightweight, ultra-compact, easy-to-use wireless microphone designed for mobile devices that offers detailed, outstanding sound. The BY-M1LV-D receiver is designed for Apple iOS devices and has an MFi Certified Lightning output. The USB-C output of the BY-M1LV-U receiver makes it compatible with Android smartphones, tablets, and other USB-C devices. The clip-on transmitter BY M1LV-TX captures crystal clear sound from all directions thanks to its built-in omnidirectional mic. Users can alter pronunciation at any time while recording and adjust tone, pace, and intonation in real time thanks to the innovative two-way audio technology with ear return monitoring. Gain control, headphone volume adjustment, and mute functionality are all available. You have complete control over your sound. A full charge can last up to 6 hours, allowing you to create content without worrying about running out of juice. The BOYA BY-M1LV system is ideal for live streaming, content development, and mobile journalism, among other applications.

In this series, there are two different receivers. With an MFi Certified Lightning output, the BY-M1LV-D receiver is designed for Apple iOS devices. The BY-M1LV-U receiver has a USB-C output, making it compatible with Android smartphones, tablets, and other devices with USB-C ports. With its built-in omnidirectional mic, the clip-on transmitter BY-M1LV-TX captures crystal-clear sound from all directions. Utilizing the breakthrough two-way audio technology with ear return monitoring, users can adjust pronunciation at any time during recording and adjust tone, speed, and intonation in real-time. With gain control, headphone volume control, and mute function, you are completely in control of your sound. A full power charge can provide 6 hours of battery life, so you can create content without worrying about power. The BOYA BY-M1LV system is a great solution for live streaming, content creation, mobile journalism, and more.

Specifications:

BOYA BY-M1LV-TX

Transmission Type	2.4GHz
Modulation	GFSK
Operating Range	Up to 328' (100m) (without obstacles)
RF Output Power	3.16mW
Microphone Polar Pattern	Built-in Microphone: Omnidirectional
Frequency Response	50Hz-8.5KHz
SNR	>70dB
Maximum SPL	Built-in Microphone: 110dB SPL
Sensitivity	Built-in Microphone: -39dB±2dB (0dB=1V/Pa@1kHz)
Power Requirement	Built-in Li-ion Battery or USB< DC 5V
Antenna	PIFA Antenna
Battery Life	Approx. 6 hours
Audio Output	3.5mm Jack
Weight	Approx. 18g
Dimensions	40x38.2x14mm
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 55°C

BOYA BY-M1LV-D-RX

Transmission Type	2.4GHz
Modulation	GFSK
Operating Range	Up to 328' (100m) (without obstacles)
RF Output Power	3.16mW
Audio Output	MFi Certified Lightning Connector
Power Requirement	Supplied by iOS Devices
Antenna	PIFA Antenna
Noise Cancellation	Yes
Weight	Approx.10g
Dimensions	23x38.2x14mm
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 55°C

Note:

Due to the 2.4GHz wireless frequency, a signal can be easily attenuated. Please try to avoid obstacles, such as walls and buildings, and avoid close proximity to devices with 2.4GHz signals, such as high-power wifi antennas, smartphones with wifi in use, radios, etc.

How to use:

Press and hold the power button for 3 seconds to turn on the transmitter.
Plug the BY-M1LV-D-RX into an iOS device or the BY-M1LV-U-RX into a USB-C device.
Transmitter and receiver pairing
Before leaving the factory, the system is pre-paired. Therefore, the connection will be established once they are powered on. If they are disconnected, please follow the steps below:
① Double-click the power button of the transmitter. The indicator flashes blue and red alternately.
② When the transmitter indicator flashes blue and red alternately, insert the supplied pairing pin into the small pinhole on the receiver. The indicator of the receiver flashes blue rapidly.
③ Transmitter and receiver will be paired within 10 seconds. Indicators of both will flash blue slowly.
You are ready to record.

Package Content:

1 × BY-M1LV-TX Transmitter
1 × BY-M1LV-D-RX Receiver
1 × USB-C Charging Cable
1 × Fur Windshield
1 × Pairing Pin
1 x User Manual.

BOYA BY-M1LV-D Wireless Microphone for IOS

BOYA BY-M1LV-D Wireless Microphone for IOS

In Stock

Brand

9,300৳ 10,000৳
